Air Cooled Solution for Power Quality Equipment
THE CHALLENGE
Cooling Grid Transmission Equipment
Redesigning ITS customer's existing air-cooled heat sink to maximize thermal performance while remaining affordable.
THINKING OUTSIDE THE BOX, COOLING IN THE BOX

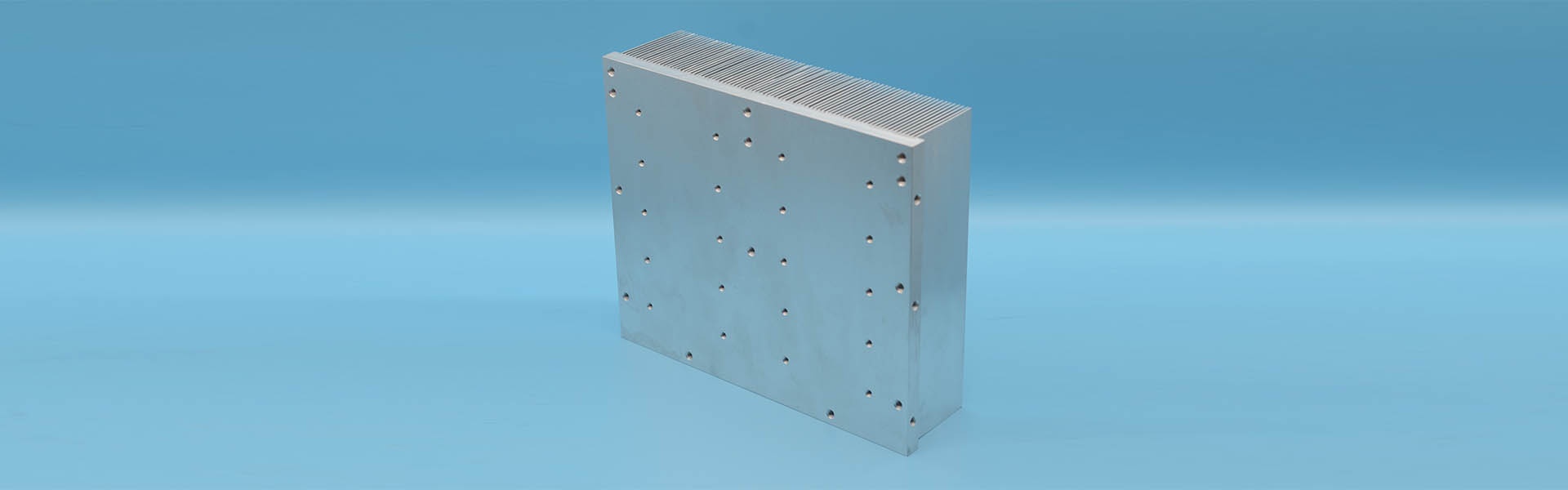

Cooling IGBTs using traditional air-cooled heat sinks
- Optimized fin design of the existing design to maximize airflow and fin efficiency
- Simulated the design with different material variations to minimize the cost of manufacturing whilst maintaining thermal performance
- Designing for manufacturability
- Periodic design meetings with the client and the manufacturing team to ensure all stakeholders are confident in the design, its performance, and manufacturability within the client’s budgeted cost
RESULTS
Cooling all high flux designs
- Matched the thermal performance of the existing heat sink
- Improved cost and quality of manufactured equipment
- Provided thermal maps for better understanding of heat spread across the heat sinks
- Improved fin design to maximize performance
